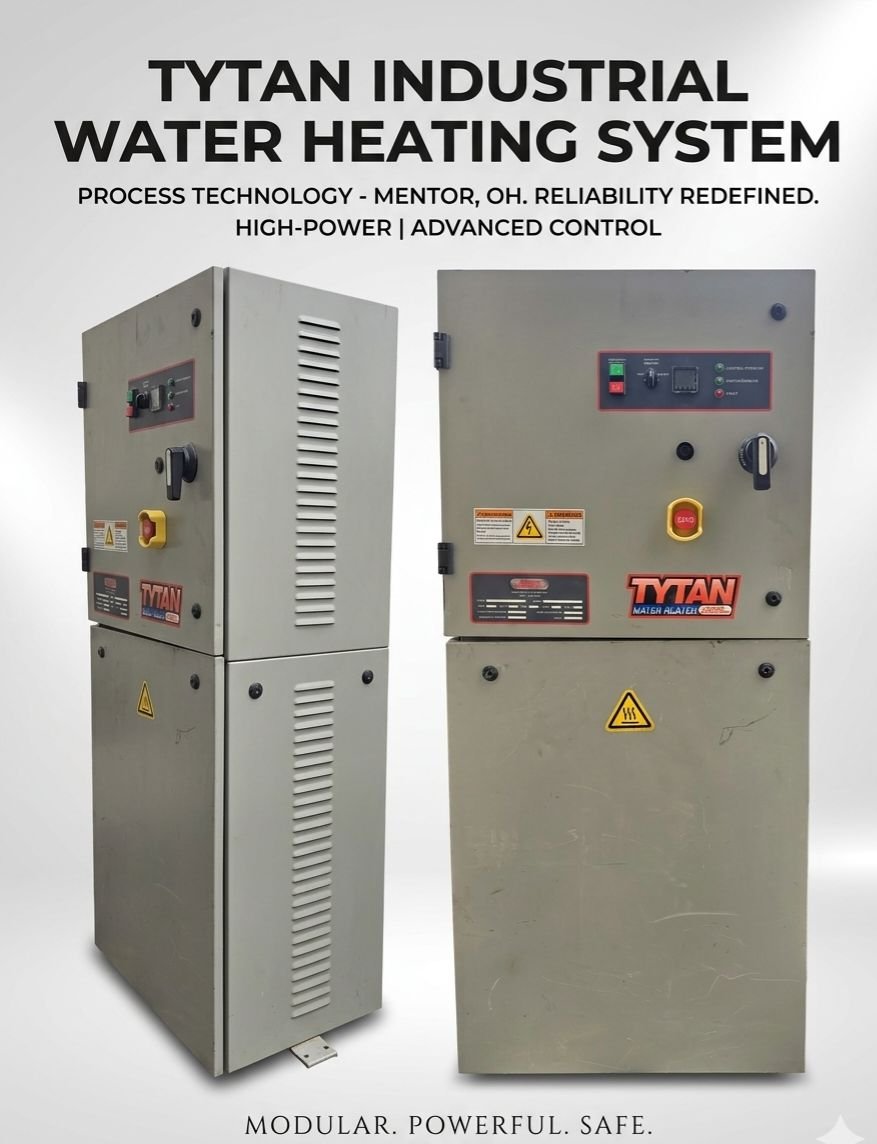

This is a Tytan Industrial Water Heater manufactured by Process Technology, based in Mentor, Ohio. It is a heavy-duty inline heating system typically used for high-purity water heating or industrial process fluids.
​Based on the technical nameplate in your photos, here are the

key specifications:

​Technical Specifications
​Model: TY-143-415-3-SC-RI-RC1-SB
​Serial Number: SN507033
​Power Output: 143,000 Watts (143 kW)
​Voltage: 415 Volts
​Amperage: 199.2 Amps
​Phase: 3-Phase
​Frequency: 50/60 Hz
​Weight: 355 lbs (approx. 161 kg)

​Key Features Visible
​Control Panel: Located at the top, featuring a digital temperature controller, “Enable Heater” selector switch, and status indicator lights (Control Power On, Heater Enabled, Fault).
​Safety Mechanisms: Includes a prominent red EMO (Emergency Off) mushroom button and a main rotary disconnect switch on the front door.
​Protective Rating: The nameplate indicates a circuit breaker rating of 250A and a short circuit rating of 25 KAIC.
​Design: The unit is housed in a ventilated industrial NEMA-style enclosure. The bottom section (marked with the heat warning symbol) houses the actual heating elements and fluid connections.

​Common Use Cases
​These units are often used in semiconductor manufacturing, pharmaceutical processing, or any industrial environment requiring precise, high-capacity temperature control of water or chemical deionized water.

​Note: Given the high wattage and amperage (199.2A), this unit requires a significant electrical infrastructure and professional installation.
